Available from your nearest Signal dealer

Get off-road for less.

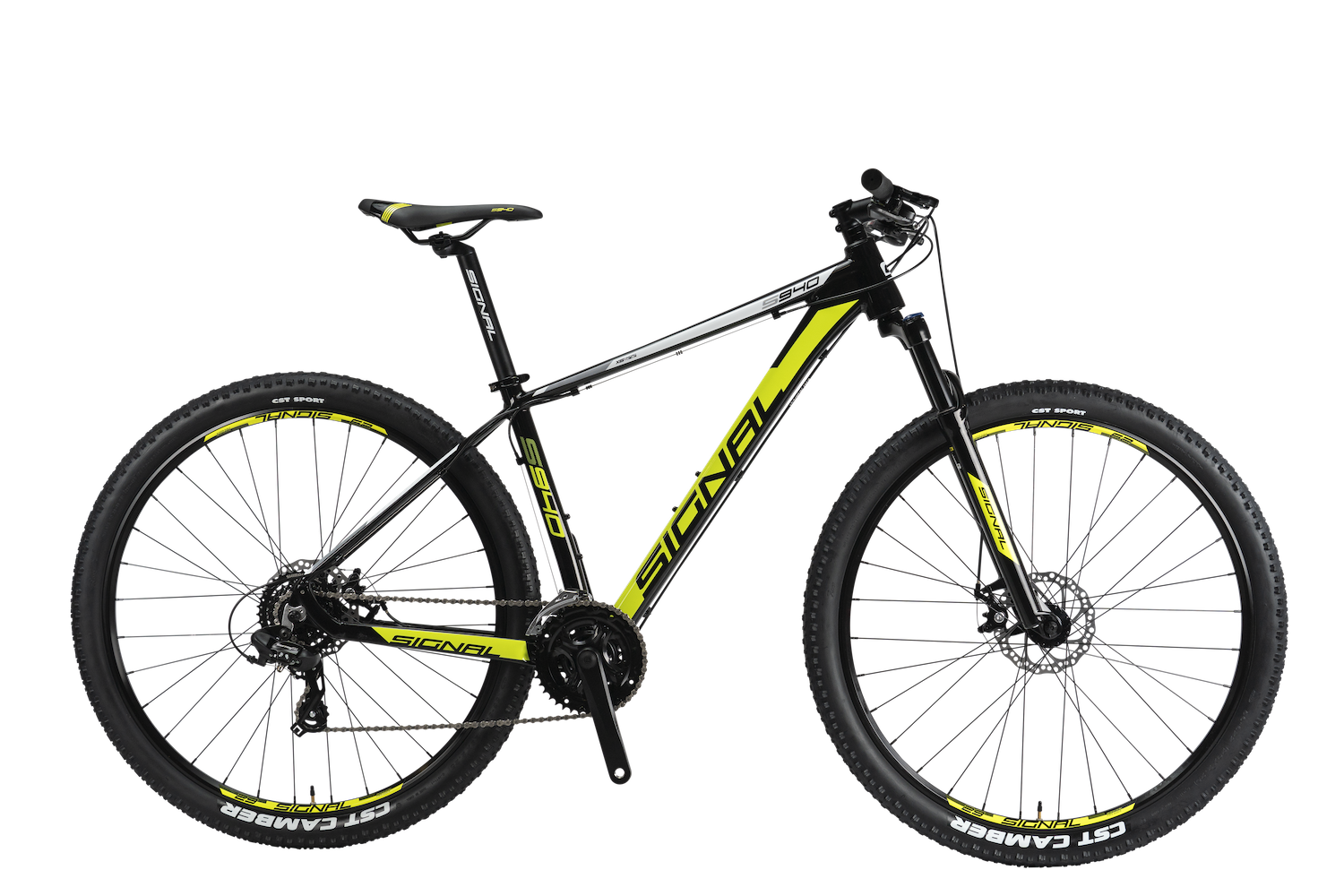

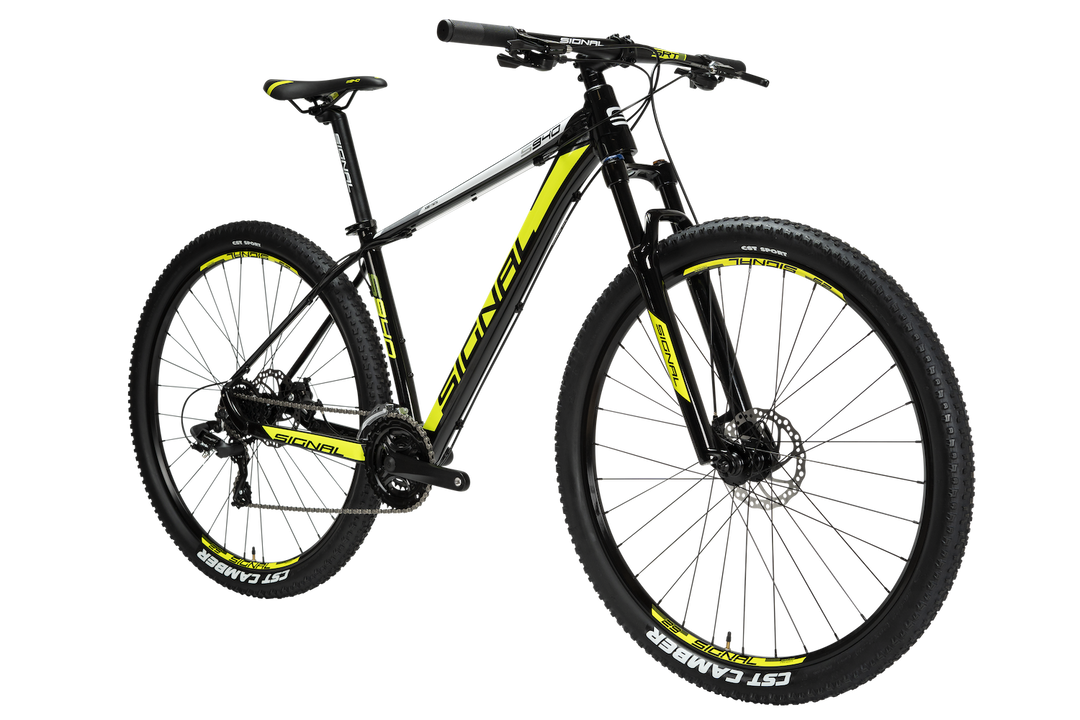

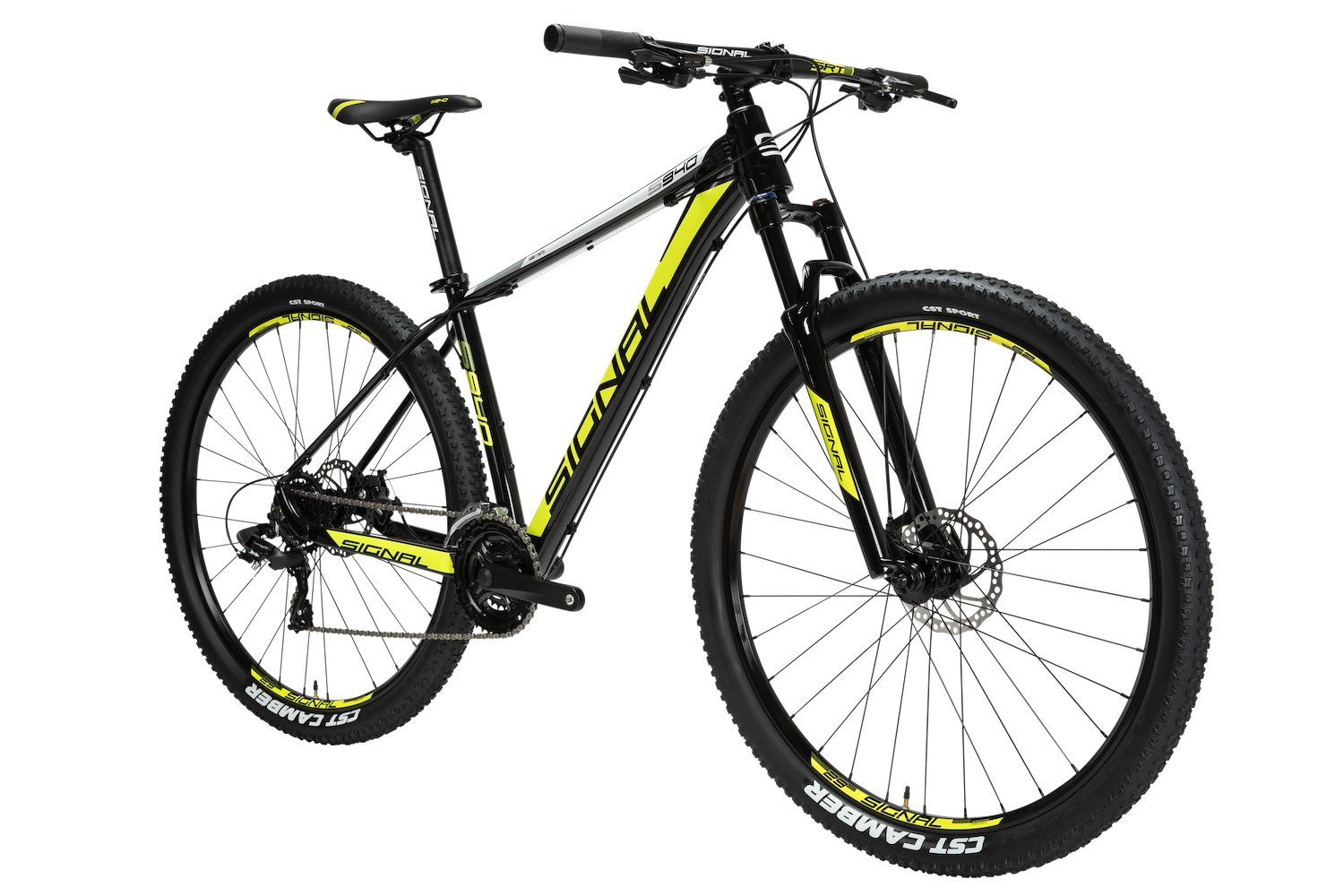

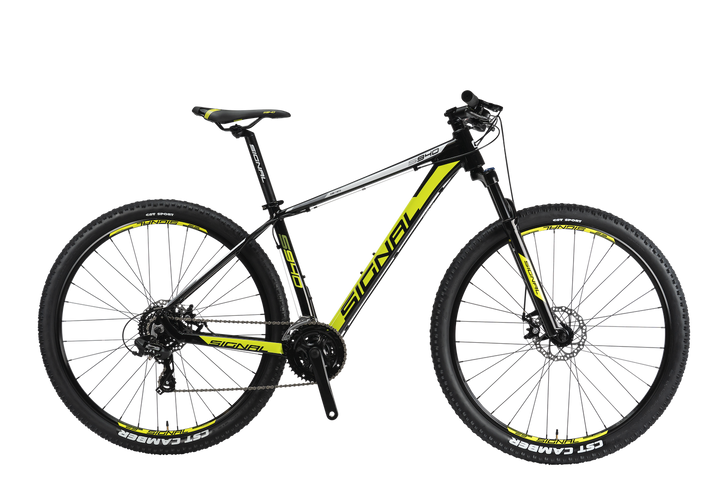

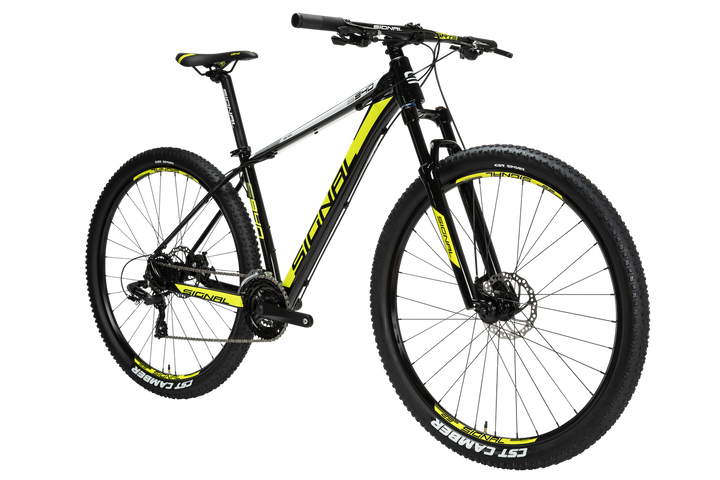

Name: Signal S940
Brand: Signal
SKU: 19-029-007-07-01-006
Price: 7195.0 ZAR
Availability: InStock

If your budget is under the pump, the Signal S940 will get you pedaling without breaking the bank.

Specifications

Geometry

About Signal

FRAME	SIGNAL 29er \| 6061 Alloy Tubing
FORK	Zoom-525-HLO 29" \| 100mm Travel
HEADSET	NECO -1.5" \| 1-1/8" Semi-Integrated Threadless Headset
STEM	SIGNAL - Alloy 31.8mm \| H: 41 \| R:7°

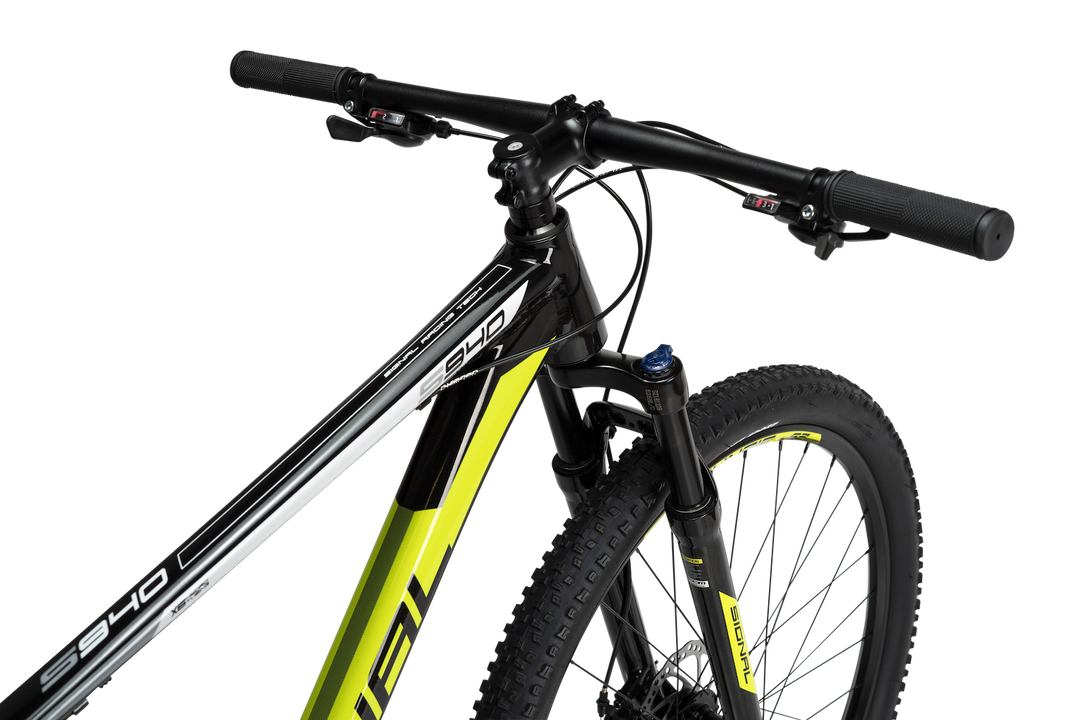

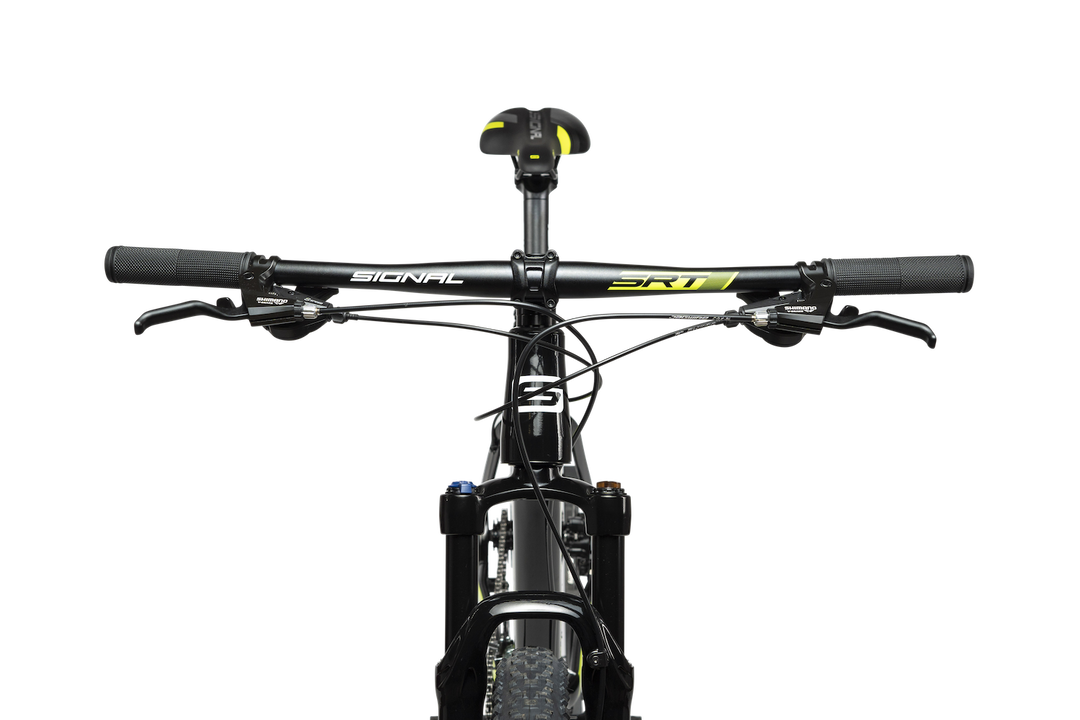

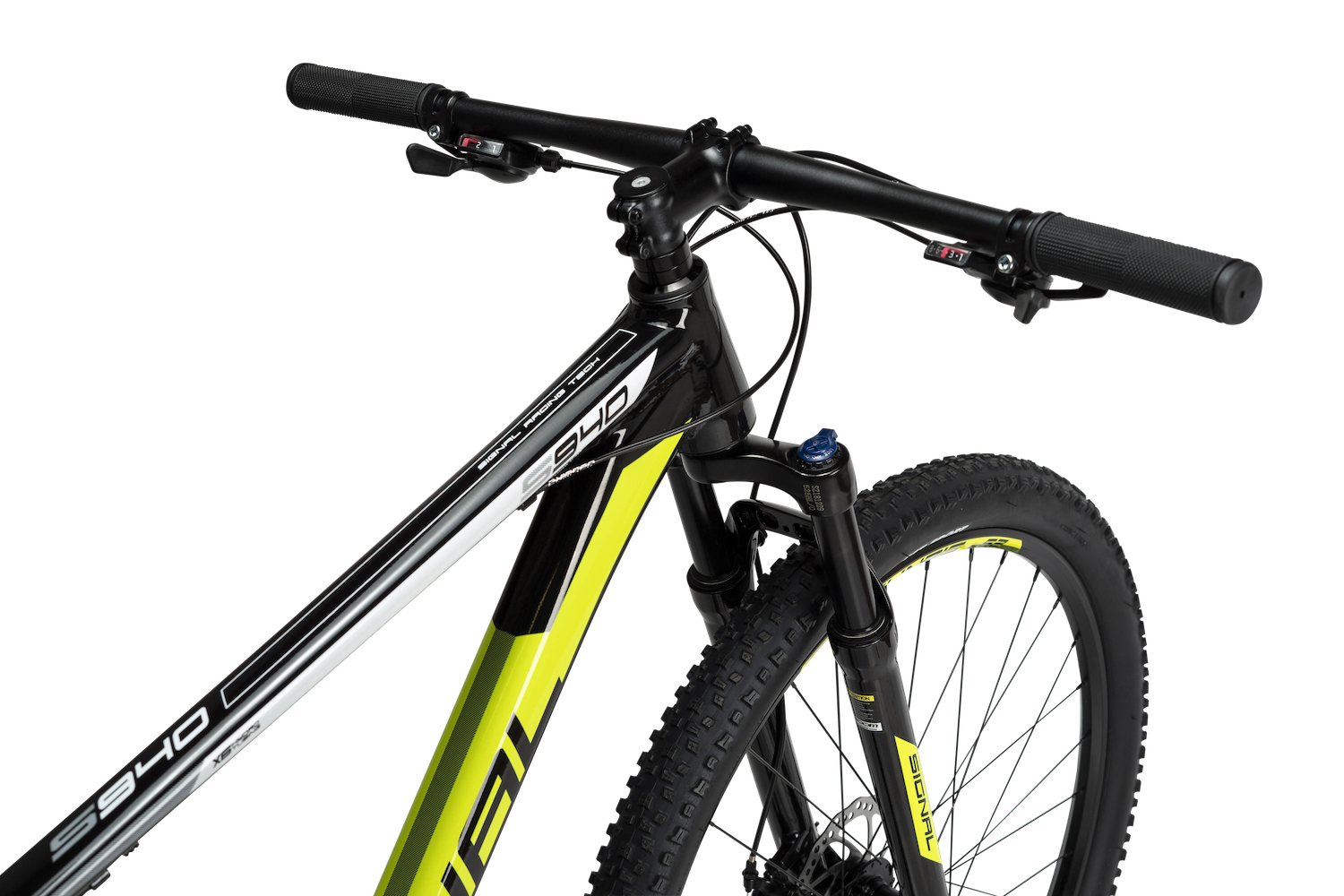

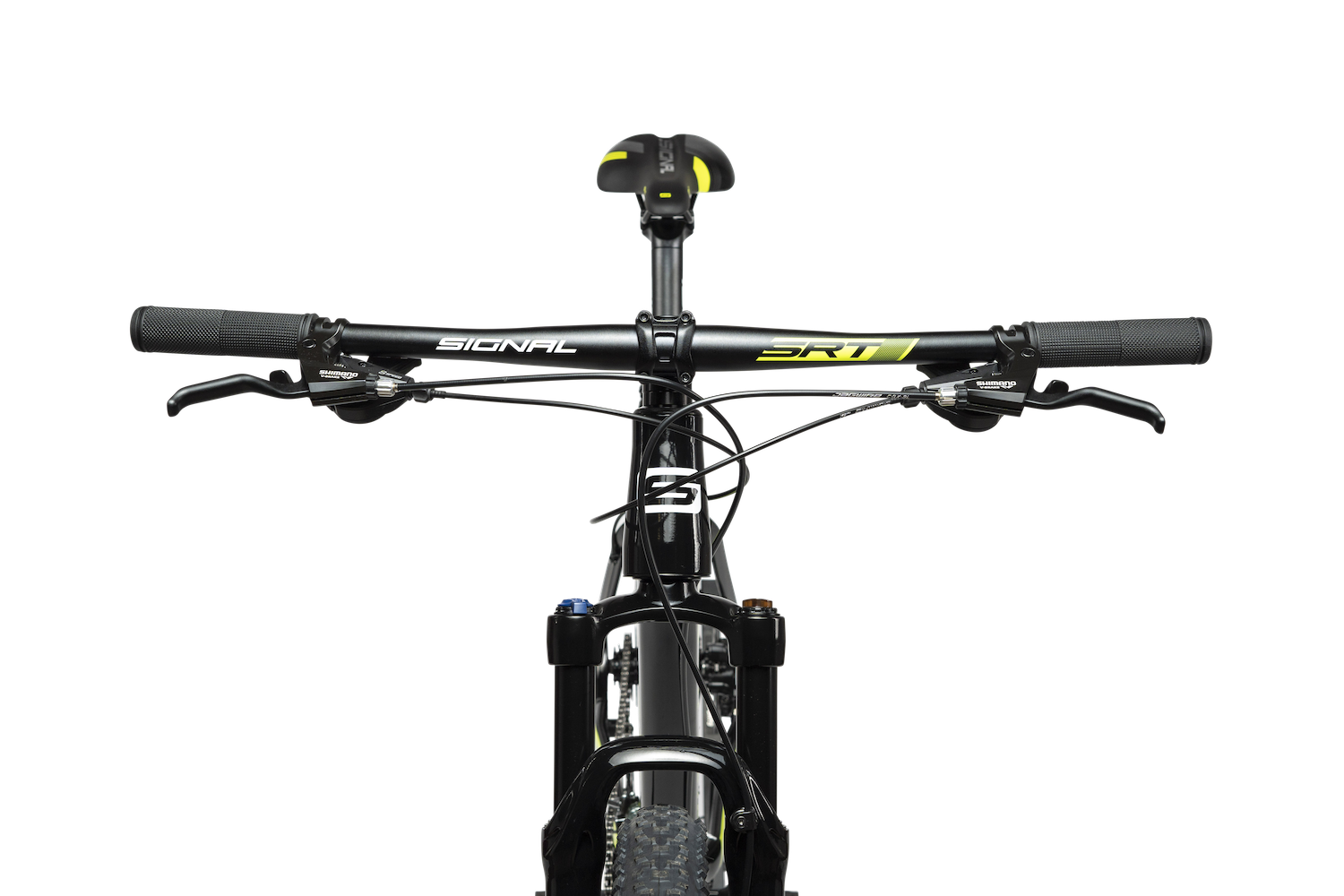

HANDLEBAR	SIGNAL - Alloy 31.8Ø - 720mm \| 6° Back Sweep
SEATPOST	SIGNAL - Alloy 31.6Ø \|350mm/400mm

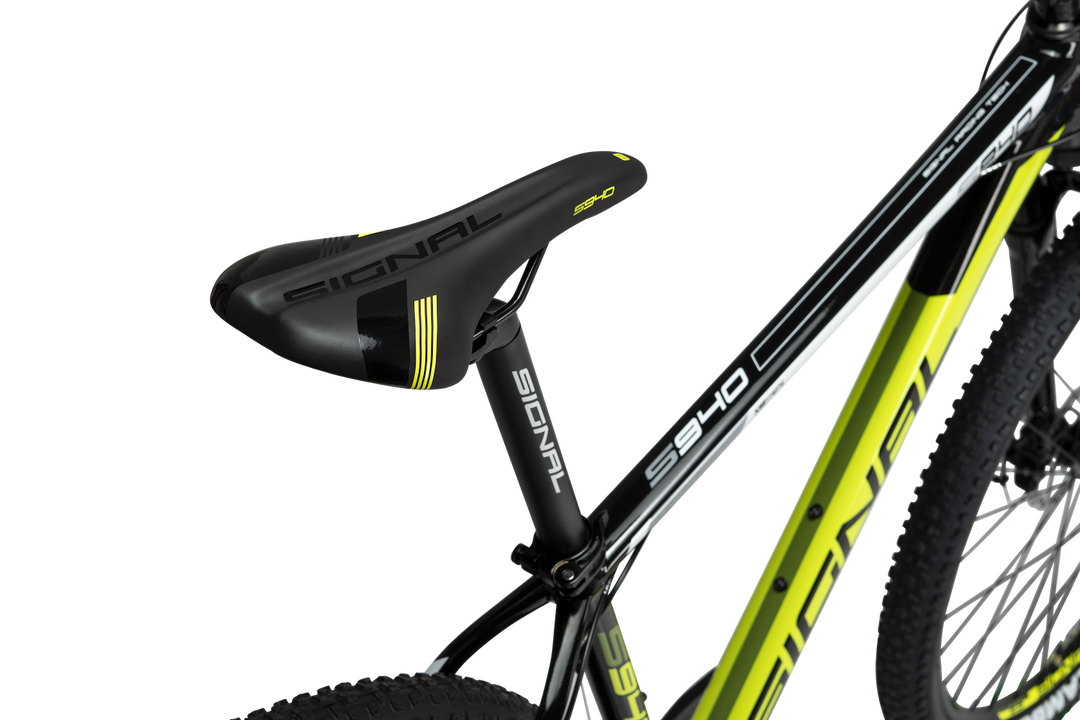

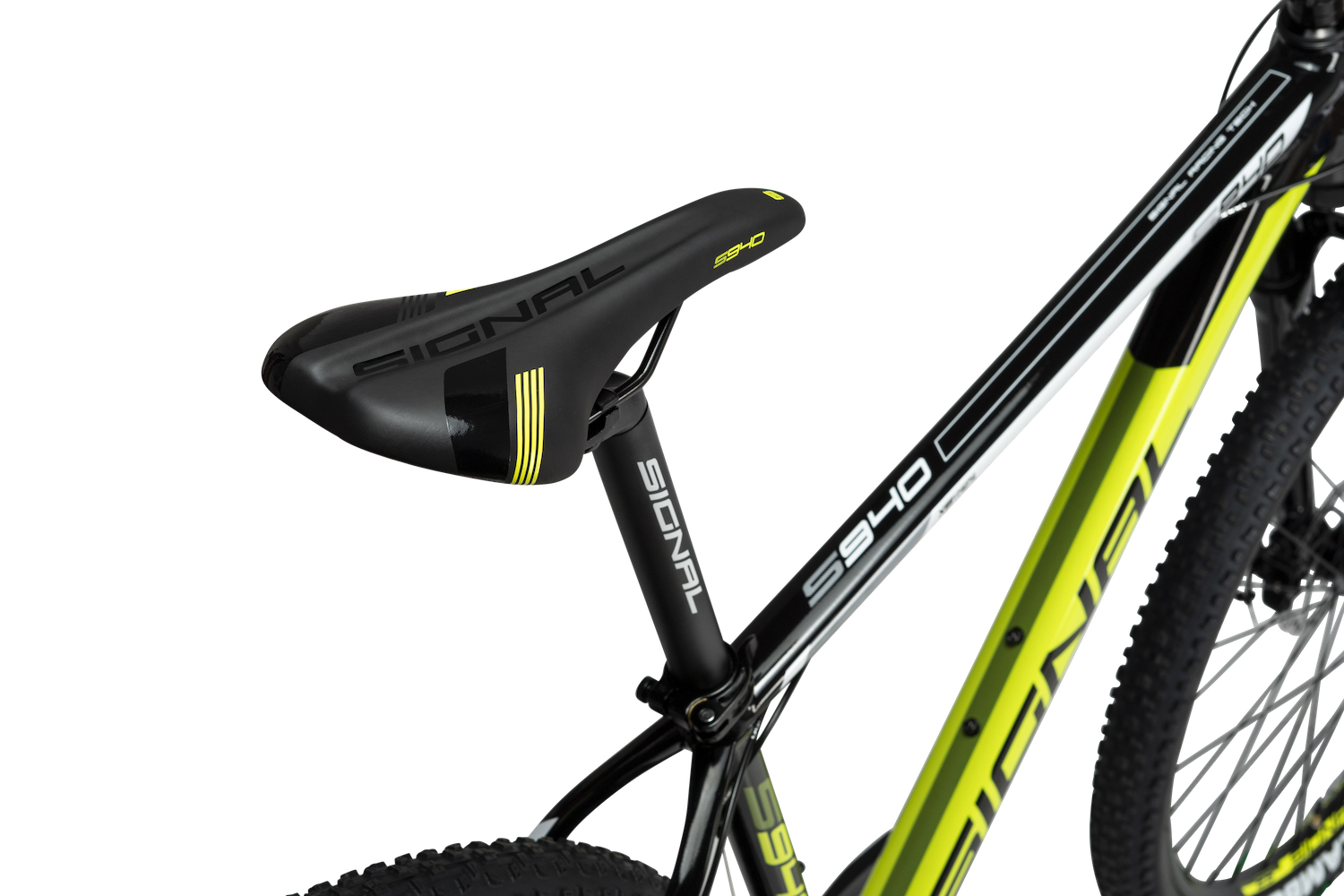

SADDLE	SIGNAL S940 - Custom
SHIFTERS	Shimano ST-M310 - 8spd
BRAKE SET	Tektro Mechanical disc brake \| 160mm Rotor
FRONT DERAILLEUR	Shimano FD-TY700-TS3 \|34.9MM BAND
REAR DERAILLEUR	Shimano RD-TX800
CRANKSET	PROWEEL Alloy \| 24/34/42T
BB	VP-BC73 \| 73mm x 122.5mm
PEDALS	9/16'' STEEL/PP - W/Reflector
CASSETTE	Shimano CS-HG31-8spd \| 11-34T
CHAIN	KMC -X8
HUBS	KT-MD7F / KT-MD4R \| 32H
RIMS	WEINMANN - 2000 / Signal Custom Design \| 32H
TYRES	CST CAMBER - 29 x 2.25 27TPI

Signal Adult Geometry Diagram

KEY	DESCRIPTION	SMALL	MEDIUM	LARGE	XLARGE
A	HEAD TUBE ANGLE	69.5°	69.5°	69.5°	69.5°
B	HEAD TUBE LENGTH	100mm	110mm	120mm	130mm
C	TOP TUBE HORIZONTAL	580mm	600mm	620mm	640mm
D	BB OFFSET	60mm	60mm	60mm	60mm
E	WHEEL BASE LENGTH	1088.6mm	1109.1mm	1129.7mm	1150.2mm
F	SEAT TUBE LENGTH	390mm	440mm	480mm	530mm
G	SEAT ANGLE	72.5°	72.5°	72.5°	72.5°
H	CHAIN STAY LENGTH	450mm	450mm	450mm	450mm
I	REACH	386.6mm	403.6mm	420.7mm	437.7mm

Signal Bikes is named after Cape Town’s iconic Signal Hill, drawing its inspiration from the Mother City’s unique energy and rugged outdoor lifestyle.

Fundamental to the essence and credibility of Signal Bikes is the partnership with Oli ‘Pinner’ Munnik, a born and bred Capetonian, whose proven racing pedigree and one-of-a-kind vibe enables Signal Bikes to deliver its promise of speed you can afford.

We Ride #OnTheHill

Signal bicycles are sold exclusively through independent bicycle and sports retailers, this allows us to ensure your bicycle is professionally assembled and setup to maximise your riding experience.

To find your nearest dealer check out our interactive dealer map here

[{"id":22631015481402,"title":"Black, Yellow \/ X-Small \/ 3 x 8 Shimano Tourney","option1":"Black, Yellow","option2":"X-Small","option3":"3 x 8 Shimano Tourney","sku":"19-029-007-07-01-006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal S940 - Black, Yellow \/ X-Small \/ 3 x 8 Shimano Tourney","public_title":"Black, Yellow \/ X-Small \/ 3 x 8 Shimano Tourney","options":["Black, Yellow","X-Small","3 x 8 Shimano Tourney"],"price":719500,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"19-029-007-07-01-006","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":22631015415866,"title":"Black, Yellow \/ Small \/ 3 x 8 Shimano Tourney","option1":"Black, Yellow","option2":"Small","option3":"3 x 8 Shimano Tourney","sku":"19-029-007-07-02-006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal S940 - Black, Yellow \/ Small \/ 3 x 8 Shimano Tourney","public_title":"Black, Yellow \/ Small \/ 3 x 8 Shimano Tourney","options":["Black, Yellow","Small","3 x 8 Shimano Tourney"],"price":719500,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"19-029-007-07-02-006","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":22631015383098,"title":"Black, Yellow \/ Medium \/ 3 x 8 Shimano Tourney","option1":"Black, Yellow","option2":"Medium","option3":"3 x 8 Shimano Tourney","sku":"19-029-007-07-03-006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal S940 - Black, Yellow \/ Medium \/ 3 x 8 Shimano Tourney","public_title":"Black, Yellow \/ Medium \/ 3 x 8 Shimano Tourney","options":["Black, Yellow","Medium","3 x 8 Shimano Tourney"],"price":719500,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"19-029-007-07-03-006","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":22631015350330,"title":"Black, Yellow \/ Large \/ 3 x 8 Shimano Tourney","option1":"Black, Yellow","option2":"Large","option3":"3 x 8 Shimano Tourney","sku":"19-029-007-07-04-006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal S940 - Black, Yellow \/ Large \/ 3 x 8 Shimano Tourney","public_title":"Black, Yellow \/ Large \/ 3 x 8 Shimano Tourney","options":["Black, Yellow","Large","3 x 8 Shimano Tourney"],"price":719500,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"19-029-007-07-04-006","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":22631015448634,"title":"Black, Yellow \/ X-Large \/ 3 x 8 Shimano Tourney","option1":"Black, Yellow","option2":"X-Large","option3":"3 x 8 Shimano Tourney","sku":"19-029-007-07-05-006","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Signal S940 - Black, Yellow \/ X-Large \/ 3 x 8 Shimano Tourney","public_title":"Black, Yellow \/ X-Large \/ 3 x 8 Shimano Tourney","options":["Black, Yellow","X-Large","3 x 8 Shimano Tourney"],"price":719500,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"19-029-007-07-05-006","requires_selling_plan":false,"selling_plan_allocations":[]}]

Sized for you

Geometry

Signal S-Series 29" bikes are available in four sizes Small through to X-Large, suiting a wide range of riders with a fine geometry balance between performance handling, climbing and comfort.
